Description

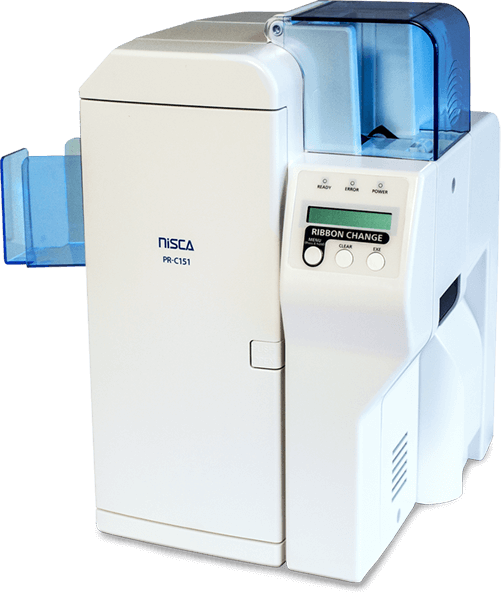

The PRC-151 offers a small foot-print, 24-bit color, 256-Grayscale, security lamination, encoding options and prints at the astounding speed of over 144* cards/hour! The PR-C151 has the same NiSCA quality, manufactured in their ISO certified production facility. The printer offers brilliant 24-bit images printed on CR80 cards with thicknesses ranging from 20 mil – 50 mil (.25mm-1.27mm) (10 mil Special Order). The PR-C151 is available with options for MagStripe encoding and security lamination with the addition of the PR-L151 laminator.
| Print Method |
Dye Sublimation Direct Print |
| Resolution |
300 dpi |
| Input |
RGB 256 level |
| Output |
CMY 256 level |
| Printing Area |
Edge-to-Edge |
|
| Speed |
| Single Side YMCKO |
128 cards/hr |
| Double-Sided YMCKO |
66 cards/hr |
|
| Capacity |
| Feeder Capacity |
100 cards (if card thickness is 0.76mm) |
| Card Exit Capacity |
100 cards (if card thickness is 0.76mm) |
|
| Card |
| Card thickness |
20 mil – 50 mil (.25mm-1.27mm) 10 mil Special Order |
| Card Size |
CR80 (85.6cm x 54cm) |
| Card material |
PVC, PVC Composite |
|
| Display |
LCD Display Panel (with Backlight), LED, Operation Button |
| Size |
| Dimensions |
16.57(H) x 10.66(W) x 13.03(D) inches (421(H) x 271(W) x 331(D) mm) |
| Weight |
Less than 26.61 lbs. (13kg) |
|
| Power |
| Power Source |
90-125VAC 220-240VAC 50/60Hz |
| Power Consumption |
Less than 120 W |
|
| Operating Temperature |
15 to 35°C – 20 to 80% humidity |
| Drivers |
| I/F |
USB, Ethernet |
| Drivers |
XP, Vista, Win 8 (32/64 bits), Win8., Win 10 |
|
| Ribbon |
| Ribbon Capacity |
250 images / roll (YMCKO ribbon) |
| Ink Ribbon |
YMCKO, K |
|
| Agency Listing |
UL/CSA/CE/FCC |
| Life |
| MTBF |
100,000 prints |
| Warranty |
5 years2 |
|
| Memory Size |
32MB |
| Options |
| Encoder |
Mag Encoder
Contactless Encoder (Mifare, Legic, HD Prox, iCLASS) |
| Laminator |
NiSCA Dedicated Laminator |
|
